1650 Litre Steel Bunded Imperium® Lube Oil Tank – Atlantis
Product code TAN.LUI-1733
£2,094.64 Exc VAT (£2,513.57 Inc VAT)
Product Description

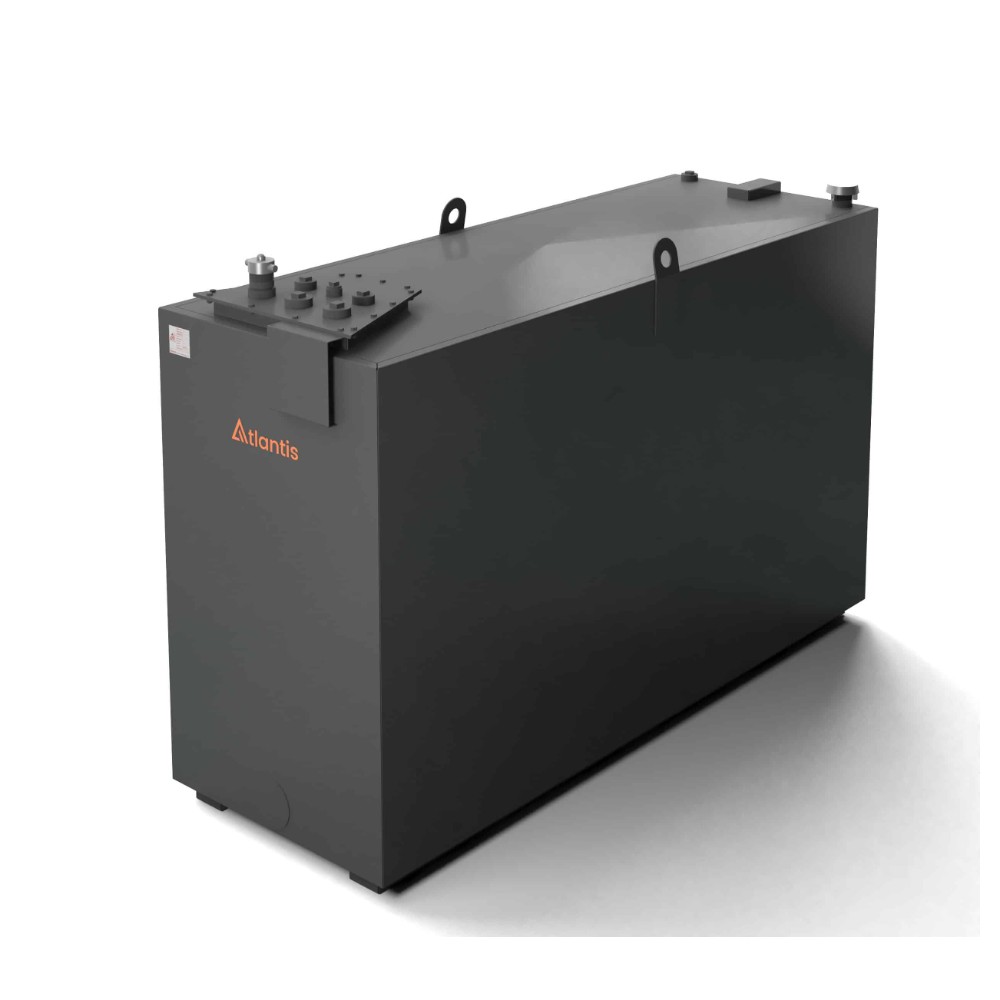

1650 Litre Steel Bunded Imperium® Lube Oil Tank – Atlantis
This 1650 litre steel bunded lube oil tank uses Atlantis Imperium® Technology and suits vehicle workshops, garages, plant depots and industrial sites. In addition, it combines rugged, fully bunded steel construction with a removable fittings plate for easy servicing. It also comes with a 10-year warranty.
Who Is It For?
It is ideal for vehicle service managers, fleet and transport maintenance teams and industrial users, because they need reliable bulk lube oil storage with clean, controlled dispensing to vehicles and machinery. As a result, it suits busy workshops where space, cleanliness and efficiency matter.
Key Features
- Fully bunded steel construction – integral secondary containment reduces the risk of spills and therefore helps with environmental compliance

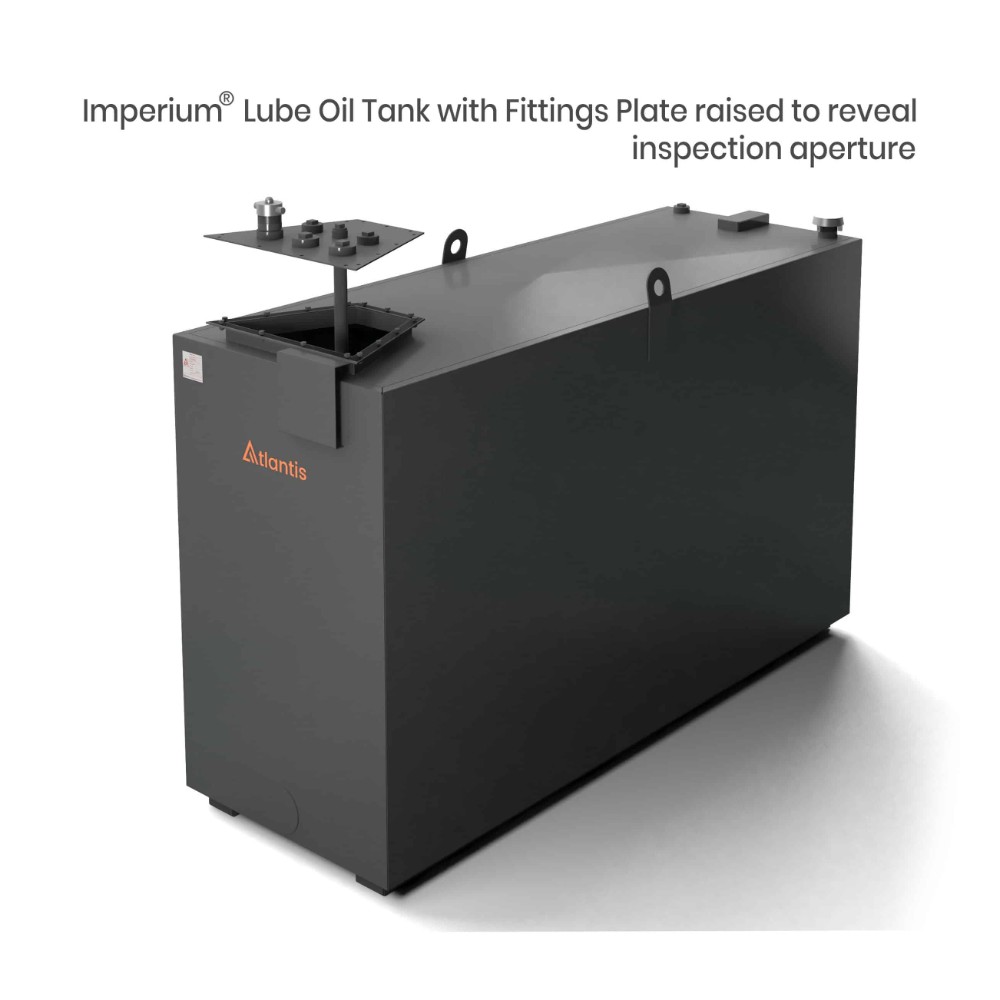

- Removable fittings plate – lifts off to reveal an inspection aperture, so cleaning and maintenance are easier
- Interchangeable fittings plate – as a result, you can convert the tank to waste oil, generator feed or day tank use in the future
- Imperium® Technology – modular design with fewer welds and tighter tolerances, as well as improved corrosion resistance (patent pending)
- Pump kit mounts – ready for any of five air-operated lube oil pump kits, so you can choose the best fit
- Measured dispensing – for example, two of the pump kit options include a digital nozzle with in-line meter
- Durable finish – two coats of Zinfos anti-rust coating in grey, so it lasts longer
- 10-year warranty
Technical Specification
- Outer dimensions: (L) 2135 mm × (W) 760 mm × (H) 1250 mm
- Brimful capacity: 1733 litres
- Nominal capacity: 1646 litres
- Usable capacity (with overfill prevention valve): 1593 litres
- Dry weight: 320 kg
- Wet weight (full): 1743 kg
- Mounting: full-length base bearers
Supplied as Standard
Removable top fittings plate:
- 2 x 2″ sockets – for an air-operated pump kit and spare
- 1 x 2″ aluminium fill point with aluminium cap and chain
- 2 x 1.5″ sockets – for a contents gauge and spare
- 1 x 1″ suction drain port with internal suction tube
Tank top (middle to rear):
- 1 x 1.5″ bund socket
- 1 x 2″ tank-to-bund vent
- 1 x 2″ bund-to-atmosphere vent
- Lifting eyes for safe handling
Front of tank:
- Alarm mounting plate (right-hand side)
- Provision for an optional hose/nozzle drip tray (left-hand side)
In addition, we include a small tin of touch-up paint, so you can cover any scratches during installation.
Pump Kit Options
The tank takes any of five air-operated lube oil pump kits, so you can choose the right one for your workshop:
- 1:1 Air Operated Oil Pump and Air Regulator (no hose or nozzle)
- 3:1 Air Operated Oil Pump and Air Regulator (no hose or nozzle)
- 5:1 Air Operated Oil Pump and Air Regulator (no hose or nozzle)
- 1:1 Air Operated Oil Pump and Air Regulator with 3m Hose & Digital Nozzle
- 3:1 Air Operated Oil Pump and Air Regulator with 15m Hose Reel & Digital Nozzle
If you order pump kit 4 or 5, Atlantis also supplies the mounting plates for the hose reel and non-drip nozzle. Pump kits can be added as optional extras below when you order.
Finish & Colour
Atlantis paints the tank with two coats of Zinfos 340 WS anti-rust coating for maximum protection. The standard colour is grey (RAL 7015). However, you can choose another RAL colour on request, although this may add up to a week to the lead time.
For the longest service life, we recommend repainting steel tanks once a year. For coastal or marine locations, we recommend an alternative paint system, so please contact us for advice.
Compliance
- Built to BS 799 Part 5
- Control of Pollution (Oil Storage) (England) Regulations 2001 and devolved equivalents
- Structural steel grade S275JR (BS EN 10025-2:2004)
Warranty
Each tank has a 10-year warranty once you register it. In addition, every tank comes with a maintenance guide and warranty manual.
Please note: the price shown is for the tank only. Pump kits and accessories are available as optional extras.
