3:1 Air Operated Oil Pump and Air Regulator with 15m Hose Reel & Digital Nozzle – Atlantis
Product code PUM.AOP.3:1-15M
£1,253.70 Exc VAT (£1,504.44 Inc VAT)
Product Description

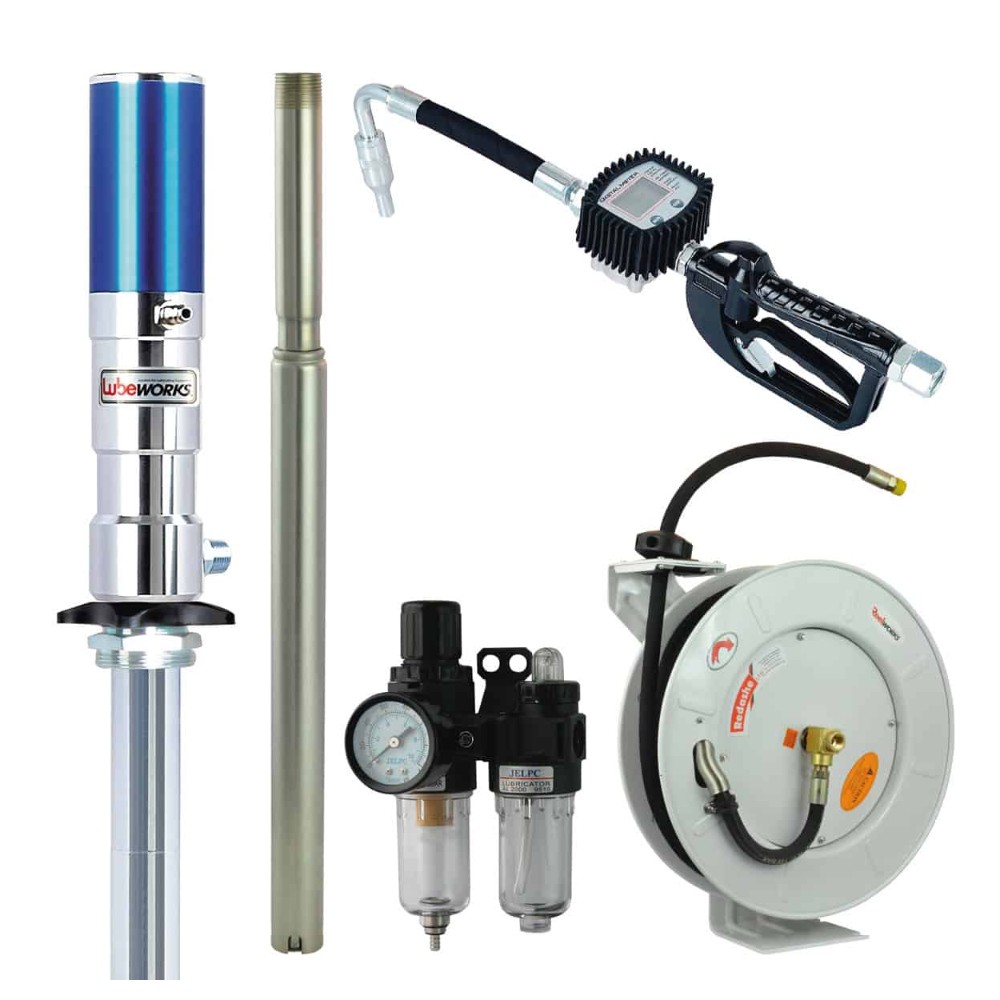

3:1 Air Operated Oil Pump and Air Regulator with 15m Hose Reel & Digital Nozzle – Atlantis

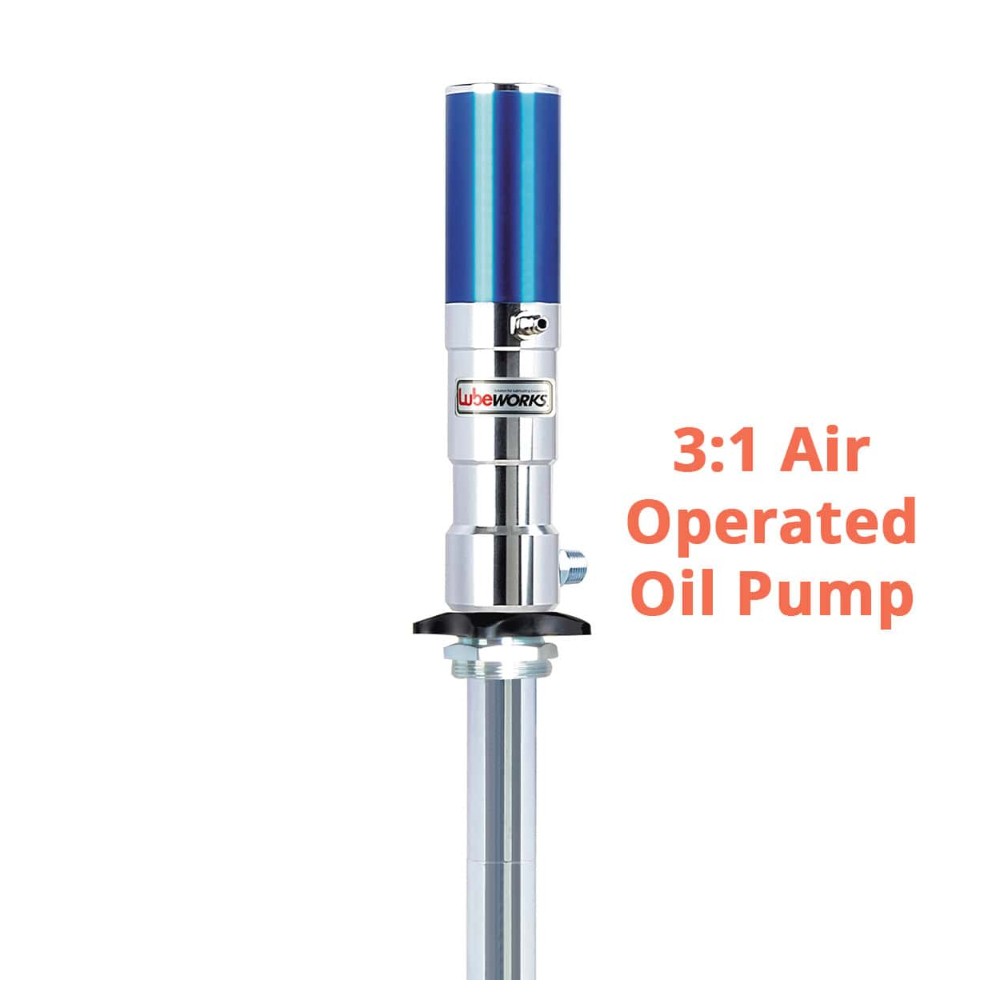

An air-operated (pneumatic) lube oil pump kit designed to work with the Atlantis Imperium® Lube Oil Tank range. Built for outstanding performance in workshop environments, it suits automotive, agricultural, commercial vehicle and heavy plant workshops, service stations, fast lube centres and fleet maintenance depots. Low-noise air motors give years of trouble-free service.

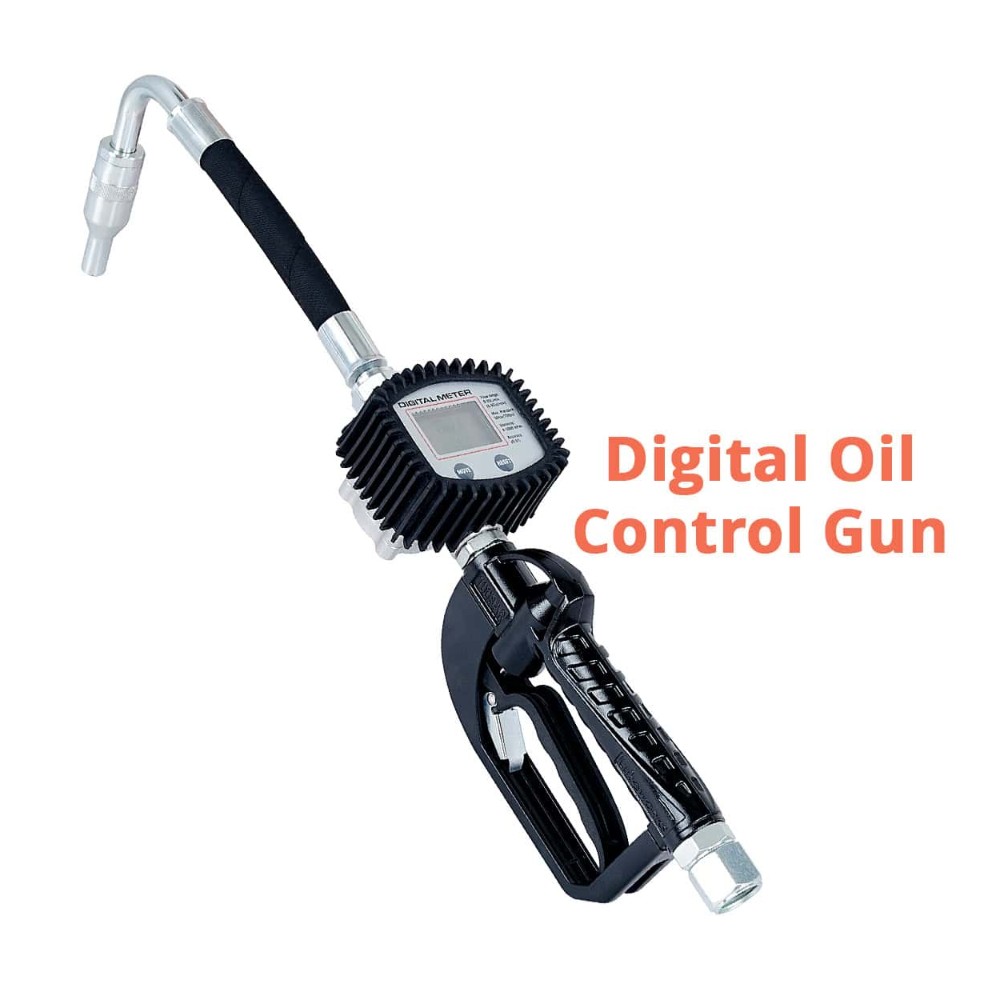

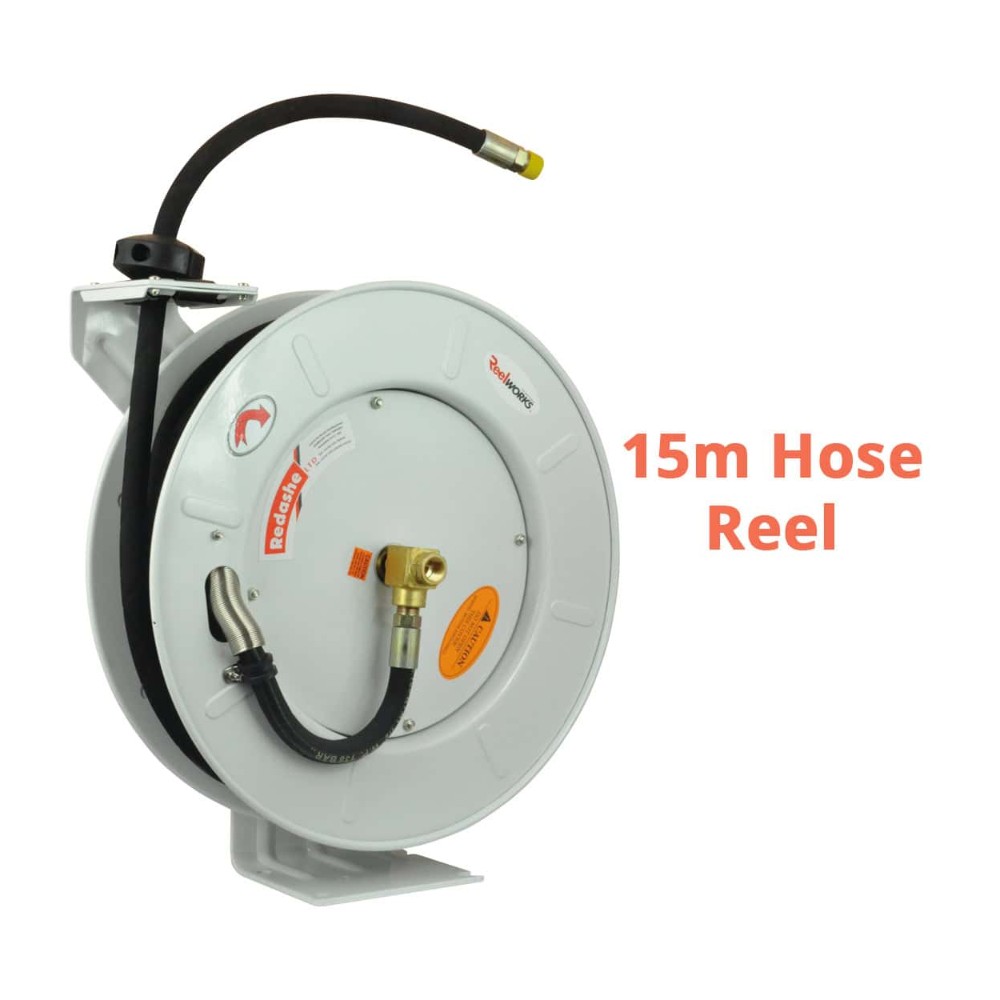

Supplied with a 15 metre delivery hose reel and a digital nozzle with in-line meter for measured dispensing.
What Does a 3:1 Ratio Mean?
The pump multiplies the air input pressure by three, so an air supply of 100 psi gives a fluid output of 300 psi. Suitable for pumping low to medium viscosity fluids over longer distances, such as transferring oil to several points around a workshop.
Pump Specification
- Ratio: 3:1
- Working pressure: 2 – 10 bar (30 – 150 psi)
- Max. fluid pressure: 30 bar (450 psi)
- Air consumption: 100 L/min @ 10 bar
- Output capacity: 20 L/min
- Suction tube diameter: 42 mm
- Air inlet connection: 1/4″ quick plug
- Oil delivery connection: 1/2″ male
- Max. viscosity: SAE 130
- Tested with SAE 30 oil at 20°C through a 2 m hose, free outlet
- 15 m delivery hose reel and digital nozzle

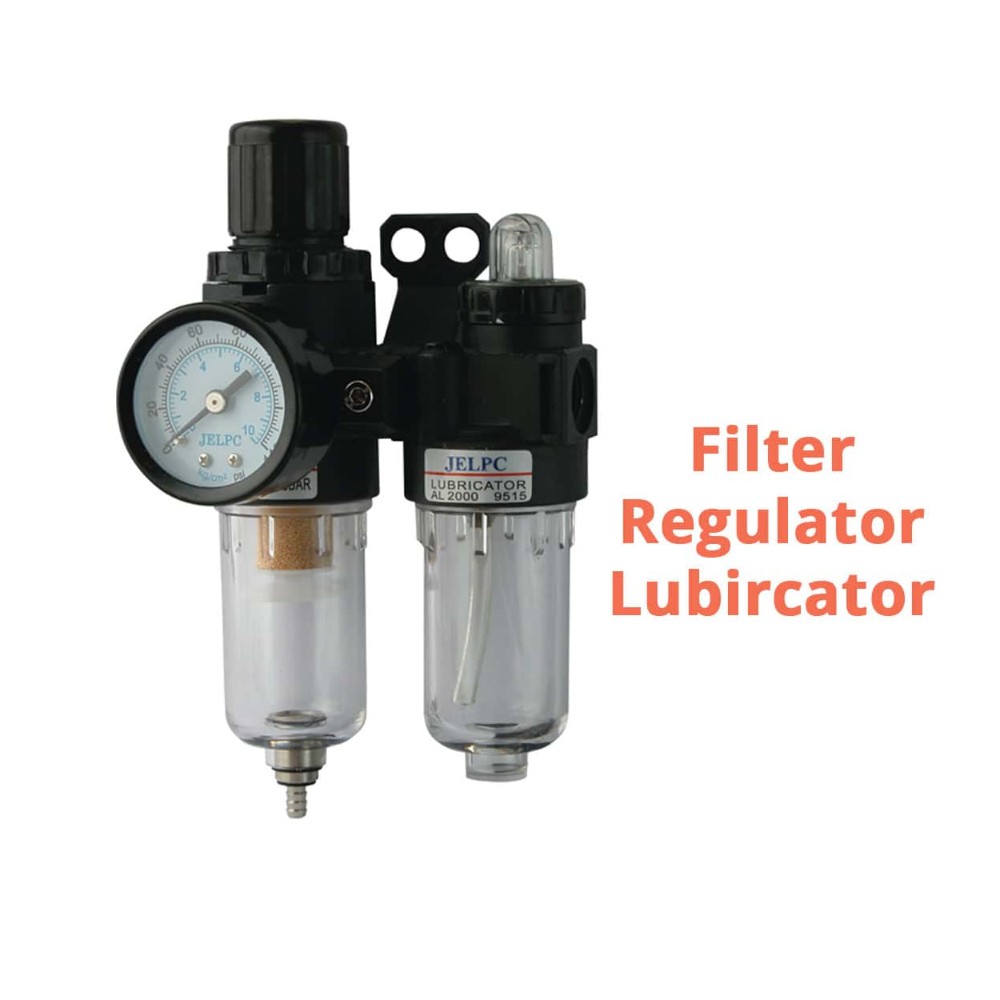

Air Inlet & Regulator Specification
- Operating fluid: air
- Adjustable pressure range: 0.5 – 8.5 bar
- Max. working pressure: 15 bar
- Inlet/outlet: 1/8″ – 1/2″ BSP
- Temperature range: 5 – 60°C
- Suggested lubricant: ISO VG32 or same grade oil
- Body/cup material: die-cast aluminium / PE
- Oil cup capacity: 25cc
Choosing the Right Pump
Five air-operated pump kits are available for the Imperium® lube oil tanks. The Lube Oil Pump Selector Guide (available to download on this page) helps you choose the best one for your workshop, or contact us for advice.
Please note: this kit needs a compressed air feed hose and connection to operate.
