Harlequin 800 Litre Sewage Pump Station – Single Pump
£1,790.00 Exc VAT
Product Description

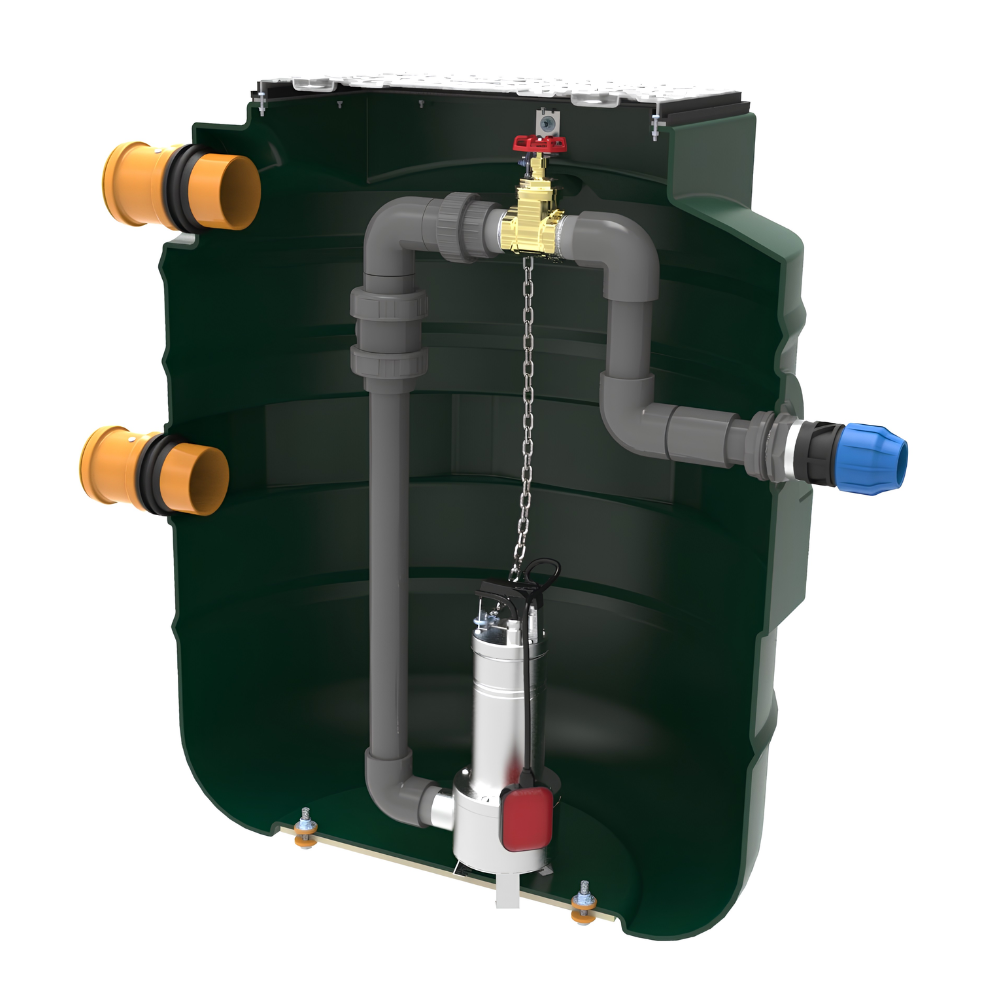

Harlequin 800 Litre Sewage Pump Station – Single Pump
The Harlequin 800 Litre Sewage Pump Station is a compact and reliable solution for pumping sewage and wastewater where gravity drainage is not possible. Designed for smaller domestic properties, extensions, additional living spaces and single-dwelling applications, it provides an effective way to collect and pump sewage to an existing drainage or treatment system.
With an 800 litre capacity and compact footprint, the pumping station is designed to collect sewage efficiently before automatically pumping it to the required discharge point. The single-pump configuration provides a straightforward and cost-effective solution for smaller domestic sewage pumping applications.
The Harlequin 800 Litre Sewage Pump Station can be supplied with different pump options to suit the application, including pumps with grinder systems where required. This makes it suitable for properties where sewage needs to be pumped from the dwelling to a mains sewer, treatment system or other approved discharge point.
Key Features
- Compact 800 litre sewage pumping station
- Single pump configuration
- Manufactured from durable Medium Density Polyethylene (MDPE)
- Suitable for sewage and wastewater applications
- 110mm inlet connection
- 63mm outlet connection
- 110mm services duct
- Integrated lifting eyes for easier handling and installation
- Double-sealed 600 x 600mm galvanised steel manhole cover
- Locking screws supplied for added security
- Brass gate valve and PVC union connection for easier servicing
- Stainless steel pump lifting chain
- Non-return valve supplied with all pumps
Specification
- Capacity: 800 litres
- Length: 1000mm
- Width: 1000mm
- Height: 1225mm
- Population Served: 1-5 Persons
- Inlet Connection: 110mm
- Outlet Connection: 50mm or 63mm, depending on pump type
- Pump Configuration: Single pump
Suitable Applications
The Harlequin 800 Litre Sewage Pump Station is ideal for:
- Small residential properties
- House extensions
- Additional living spaces
- Garden rooms and outbuildings with sanitary facilities
- Properties where gravity drainage is not possible
- Direct sewage pumping from a property
- Pumping sewage to an existing mains sewer
- Pumping sewage to a sewage treatment system
- Wastewater pumping applications
- Applications where a grinder pump is required
Optional Extras
High Level Alarm (recommended): The high level alarm can be supplied to indicate when the water or sewage limit has risen above the safe operating level.
Product Specification
| Weight | 60 kg |
|---|---|
| Dimensions | L 1000 x W 600 x H 1225 mm |
| Population Served | 1-5 Persons |
| Manufacturer |
