Harlequin 1550 Litre Effluent Pump Station – Twin Pump With High Level Alarm
The Harlequin 1550 Litre Effluent Pump Station is designed for pumping final-stage effluent from a sewage treatment plant or septic tank to a suitable drainage field. It can also be used to pump final-stage effluent from a sewage treatment plant to a watercourse, subject to obtaining the necessary Environment Agency (EA) permits.

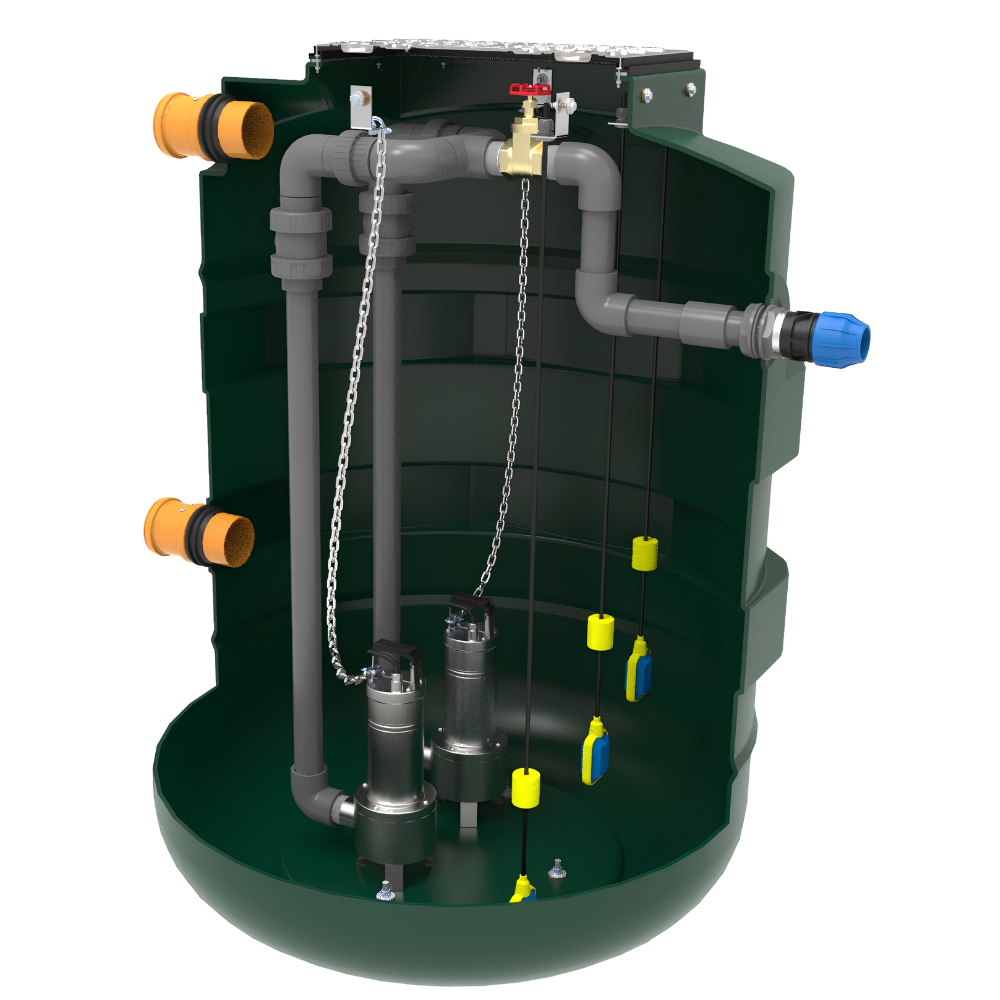

Manufactured from rotationally moulded polyethylene, Harlequin pump chambers are strong, durable and easier to handle than many GRP alternatives. This pump chamber is supplied with a twin pump system, providing added reliability and continued operation in the event of a single pump failure. The system includes a high-level alarm and control panel to manage pump operation and provide a warning if a pump fails. The 1550 litre capacity provides up to 24 hours of storage for domestic installations serving up to 10 people.
Key Features
- Compact 1550 litre Effluent pumping station
- Twin pump configuration
- Manufactured from durable Medium Density Polyethylene (MDPE)
- Suitable for Effluent and wastewater applications
- 110mm inlet connection
- 50mm outlet connection
- 110mm services duct
- Integrated lifting eyes for easier handling and installation
- Double-sealed 600 x 600mm galvanised steel manhole cover
- Locking screws supplied for added security
- Brass gate valve and PVC union connection for easier servicing
- Stainless steel pump lifting chain
- Non-return valve supplied with all pumps
Specification
- Capacity: 1550 litres
- Length: 1200mm
- Width: 1200mm
- Height: 1625mm
- Population Served: Up to 10 People in a domestic installation
- Inlet Connection: 110mm
- Outlet Connection: 50mm
- Pump Configuration: Twin pump
Suitable Applications
The Harlequin 1550 Litre Effluent Pump Station is ideal for:
- House extensions
- Properties where gravity drainage is not possible
- Direct sewage pumping from a property
- Pumping sewage to an existing mains sewer
- Pumping sewage to a sewage treatment system
- Wastewater pumping applications
- Applications where a grinder pump is required
