Harlequin 1100 Litre Effluent Pump Station – Single Pump
£1,329.00 Exc VAT
Product Description

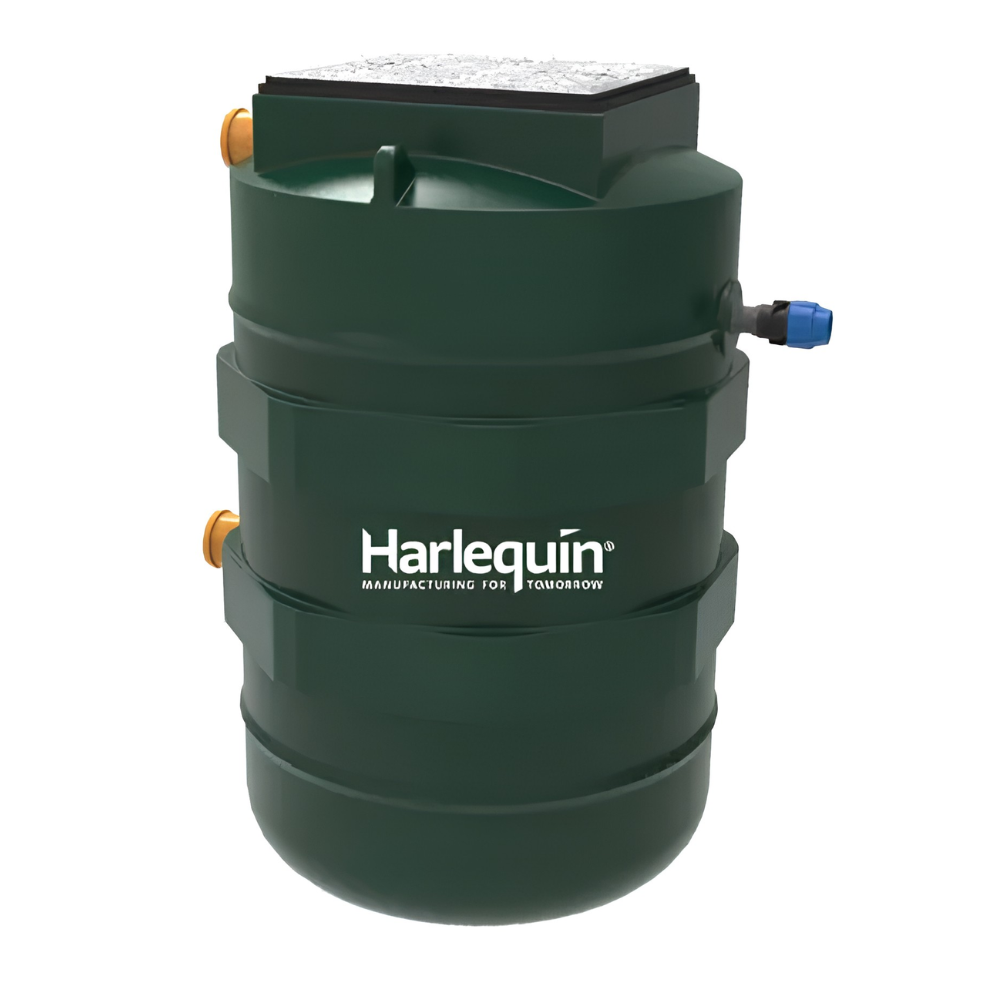

Harlequin 1100 Litre Effluent Pump Station – Single Pump
The Harlequin 1100 Litre Effluent Pump Station is designed for pumping treated final-stage effluent from a sewage treatment plant or septic tank to a suitable drainage field. It can also be used to pump treated effluent from a sewage treatment plant to a watercourse, subject to the relevant Environment Agency permits and requirements.
Manufactured from durable rotationally moulded polyethylene, the Harlequin pump chamber provides a strong and lightweight solution that is easier to handle and install than many GRP alternatives.

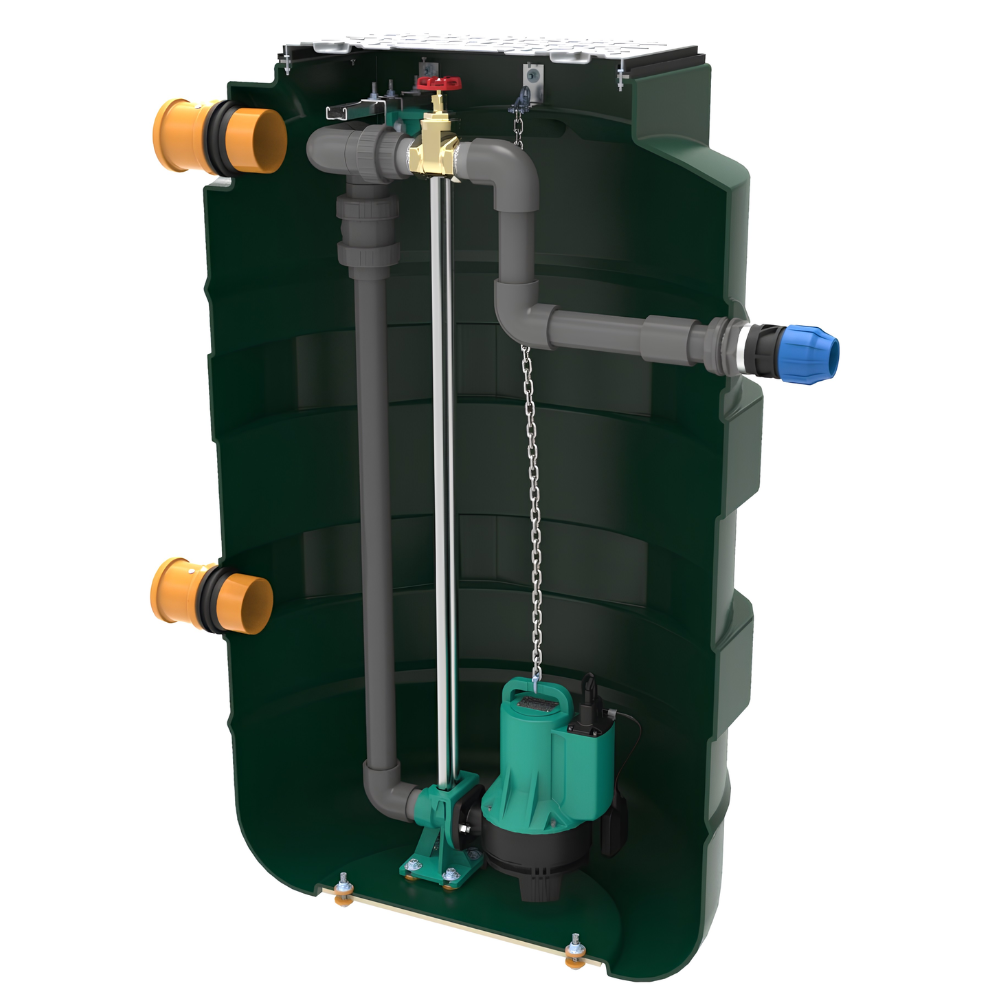

The 1100 Litre pump station is supplied with a single pump as standard. Twin-pump options are also available for installations where additional reliability and the reassurance of a backup pump are required.
With an 1100-litre capacity, the pump chamber provides up to 24 hours of storage for domestic installations serving up to 7 people, making it a practical solution for larger households and properties requiring reliable effluent management.
Key Features
- Compact 1100 litre Effluent pumping station
- Suitable for up to 7 people in a domestic installation
- Single pump configuration
- Manufactured from durable Medium Density Polyethylene (MDPE)
- Suitable for effluent and wastewater applications
- 110mm inlet connection
- 63mm outlet connection
- 110mm services duct
- Integrated lifting eyes for easier handling and installation
- Double-sealed 600 x 600mm galvanised steel manhole cover
- Locking screws supplied for added security
- Brass gate valve and PVC union connection for easier servicing
- Stainless steel pump lifting chain
- Non-return valve supplied with all pumps
Specification
- Capacity: 1100 litres
- Length: 1000mm
- Width: 1000mm
- Height: 1645mm
- Population Served: 1-7
- Inlet Connection: 110mm
- Outlet Connection: 50mm or 63mm, depending on pump type
- Pump Configuration: Single pump
Suitable Applications
The Harlequin 1100 Litre Effluent Pump Station is suitable for:
- Properties where gravity drainage is not possible
- Water and effluent pumping
- Post-wastewater treatment applications
- Direct sewage pumping from a property
- Pumping effluent to an existing drainage or treatment system
- Applications requiring a grinder pump
Optional Extras
High Level Alarm (recommended): The high level alarm can be supplied to indicate when the water or sewage limit has risen above the safe operating level.
Product Specification
| Weight | 72 kg |
|---|---|
| Dimensions | L 1000 x W 1000 x H 1645 mm |
| Population Served | 1-7 Persons |
| Manufacturer |
